| 20W Polycrystalline Solar Panel |

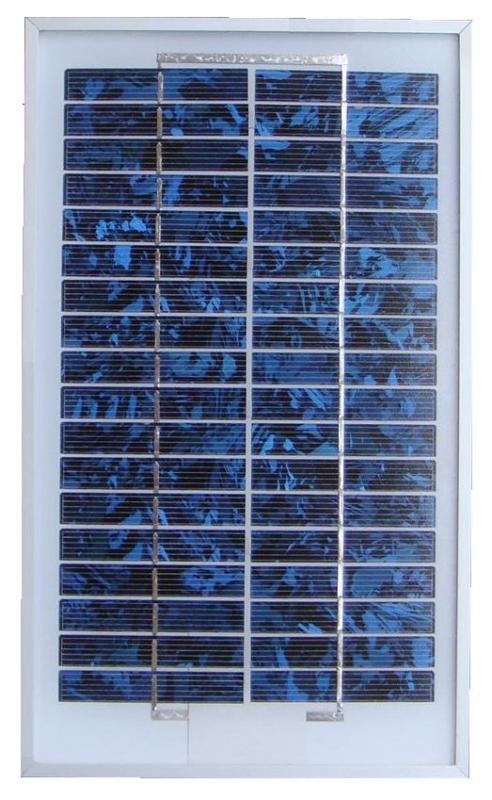

20W Polycrystalline Solar Panel
DS-A1-20 Solar Module
|
Module
|
Rated Power (Wp)
±5%
|
Rated Voltage (Vmp)
|
Rated Current (Imp)
|
Open circuit voltage (Voc)
|
Short Circuit Voltage (Isc)
|
|
DS-A1-20
|
20W
|
17.3V
|
1.16A
|
21.6V
|
1.29A
|
Dimension: 530x350x30(mm);
20.9x13.8x1.18(inch)
Laminate: Glass/EVA/TPT (tedlar/pet/tedlar) or TPE
Front: High-transmission 3.2mm tempered glass
Back: TPT/TPE
Frame: Clear anodized aluminum frame
Output: Junction box
Weight: 2.6kg; 5.7 lbs
Operation Temperature Range: - 40°C～85°C
NOCT: 48°C±3°C
Temperature coefficients of Im: + 0.1 %/°C
Temperature coefficients of Vm:
- 0.38 %/°C
Maximum System Voltage:
DC715V
STC:
1000W/m²，25°C，AM1.5
