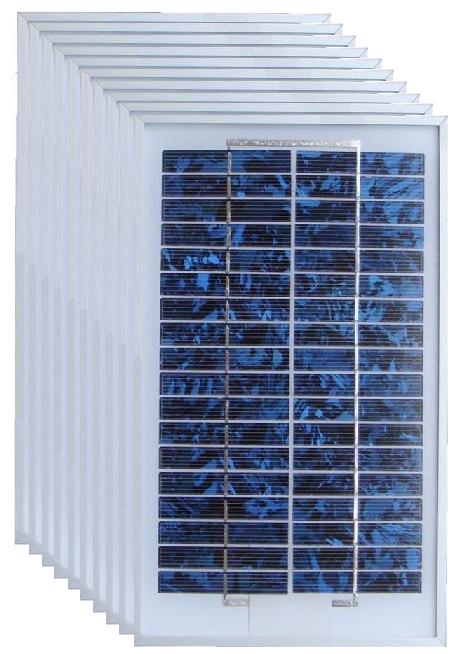

Module
|
Rated Power
(Wp) ±5%
|
Rated Voltage
(Vmp)
|
Rated Current
(Imp)
|
Open circuit
voltage (Voc)
|
Short Circuit
Voltage (Isc)
|
|
DS-A1-05
|
5W
|
17.3V
|
0.29A
|
21.6V
|
0.32A
|
Dimension: 300x190x25(mm);
11.8x7.5x1(inch)
Laminate: Glass/EVA/TPT (tedlar/pet/tedlar) or TPE
Front: High-transmission 3.2mm tempered glass
Back: TPT/TPE
Frame: Clear anodized aluminum frame
Output: Junction box
Weight: 0.7kg; 1.54 lbs
Operation Temperature Range: - 40°C～85°C
NOCT: 48°C±3°C
Temperature coefficients of Im: + 0.1 %/°C
Temperature
coefficients of Vm:
- 0.38 %/°C
Maximum System Voltage:
DC715V
STC:
1000W/m²，25°C，AM1.5
