Sun-Ray
The Monoflo Sun-Ray solar pump has been designed to transfer surface
water with the same efficiency and reliability as other Monoflo solar
pumps. Available with either a stationary or GPS Tracking array, ranging

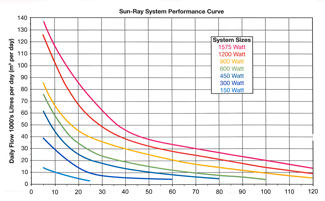

from 150W to 1575W, the Sun-Ray can deliver very high daily flows up to
discharge pressures of 120m.
The highly efficient, helical rotor pump is inherantly self-priming, so
the pump can be positioned up to 6m above the water source, allowing the
pump to be installed on top of dam walls or on river-banks above the
high water mark.
The Sun-Ray is suitable for pumping water from springs, rivers, tanks

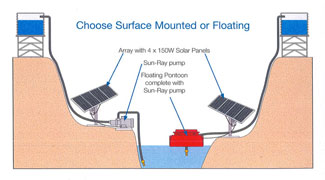

and dams. It is available with a floating pontoon that has been designed
to safely enable the pump to float on a dam or other water source.
The PC (Progressive Cavity) helical rotor pump element used in the Sun-Ray pump is proven to provide maximum water output even in water containing silt or iron oxide, and low pump speed means extended rotor and stator life in abrasive bores.
The PC pump will deliver water with every rotation regardless of speed; on solar, when pump speed will vary with the amount of sun, it is important to get water with every turn of the pump.
All Sun-Ray systems are supplied complete with pre-wired solar modules, array frames, pump element, submersible motor and solar motor controller. The entire package is easy to assemble and all electrical connections are fitted with plugs & sockets, so electrical connections do not require an electrician.
Float and/or pressure switch input enables complete system automation. The Sun-Ray will only pump as long as water is needed and will stop once tanks and troughs are full.
Applications
- Surface water transfer
- Remote water supply for agriculture / livestock
- Medium scale irrigation
- Remote domestic water suppply
- Aqua culture
Features
- Solar power - no fuel costs, maximum output in sunny conditions when you need it most
- Self contained - no need to connect AC power or transport fuel
- Simple design, proven technology - you can rely on it
- Supplied as a complete package - easy to install
- Helical rotor pump - highly efficient, self priming
- The rate at which water is pumped can be limited to suit the water source
