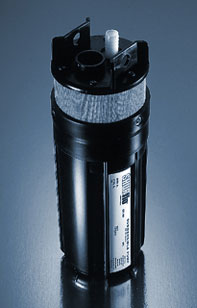

9300 Series Submersible 24 VDC Pumps

The solution to your remote water pumping needs. This pump is rugged, durable and built to last. The 9300 delivers a steady 112 GPH (422 LPH) at its maximum depth of 230 feet (70M) when supplied with 24 VDC. Its unique water-tight power connector stops water wicking and prevents potential condensation problems. Great for livestock watering, irrigation, pond areation, remote homes and cabins.

Features

  • Long -life 24 VDC operation
  • For 4" wells or larger
  • Quick disconnect with "Watertite-Gland" Design Pat Pend
  • Corrosion-proof housing with stainless-steel fasteners
  • Runs dry without damage
  • 50 mesh stainless steel inlet screen
  • State of the art solid diaphragm

Specifications*

Vertical Lift (feet):

20

60

100

140

180

230

Vertical Lift (meters):

6.1

18.3

30.5

42.7

54.9

70.1

Flow (GPH):

111

105

100

93

87

79

Flow (LPH):

420

398

379

352

329

300

Solar Array (Min Watts):

58

78

99

115

135

155

Current Amps:

1.7

2.3

2.9

3.5

4.0

4.6

*Specifications subject to change.
